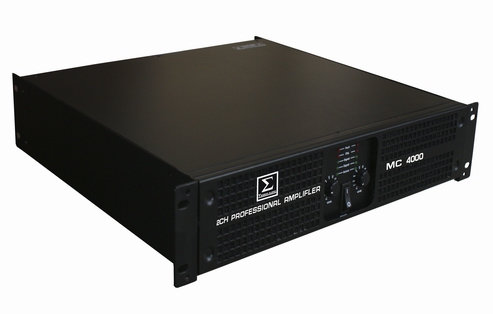

【产品名称】MC系列series
【产品描述】



 MC系列产品采用了新技术、新工艺。先进的技术使其音色、稳定性及整个制造过程等达到最佳状态。 1.解决传统产品散热系统温度高的问题。产品散热部分的温度在产品最大功率持续输出的状态下恒定为70°(环境温度为29°测试)。 2.使用了3E高效率电源系统,使该系列功放达到极低的发热量。电源利用率高达86%,损耗低,符合国家规定节省能源。 3.机箱紧凑结实,体积小,重量轻。 4.产品适合KTV、酒吧、演出等场合使用。 5.产品返修率控制为1%。 6.产品有立体声、桥接,并接三种工作状态。 7.产品保护电路齐全,其中短路运用了新技术(可连续短路1小时以上,产品不出故障)。

   MC series products adopting new technology, new technology. Advanced technology makes its timbre, stability and the whole manufacturing processes to achieve the best state.
   1.Solve traditional product cooling system of high temperature. Products in the temperature cooling section of high-power continuous output product's most under the condition of constant for 70 ° (environment temperature for 29 ° test).
   2.Use the efficient power system, make 3E. This series of low calorific value to power amplifier. Power utilization rate as high as 86%, low loss, conform to the state provisions to save energy.
   3.Chassis compact fruit, small volume, light weight.
   4.Products suitable for KTV, bars and performance applications.
   5.Products FanXiuLv control 1%.
   6.Products are stereo, bridge, and after three working state.
   7.Product protection circuit is complete, including using new technology (short for 1 hour above, short-circuit fault) products not out.

型号model:                              MC2200     MC2300    MC2400    MC2500    MC2600    MC2800   MC3000    MC4000

输出功率Stereo Power8Ω:                200W×2    300W×2   400W×2   500W×2   600W×2   800W×2  1000W×2  1200W×2
输出功率Stereo Power4Ω:                350W×2    500W×2   650W×2   650W×2   1000W×2  1200W×2 1500W×2  1800W×2

桥接功率Bridge Power8Ω:                380W       550W      650W      1100W     1180W     1750W    1900W     2500W
频率响应Frequency response:                                         20~20KHz
输入灵敏度Sensitivity:                                              1.0V(0dB)
输入阻抗Impedance(20HZ-20KHZ,balanced):                            20KΩ
信噪比(A weighted):                                                 >100dB
尺寸Dimensions(mm):                                               483X470X132
重量N.W:                                15KG       17KG      18KG      21KG      24KG       25KG     28KG      30KG
